2304-12C-G
CKD 2304-12C-G Series Dial Regulator, Port Size: Rc 1½ Dial is provided to enable easy pressure adjustment with G59D-8-P10 pressure gauge.
Description

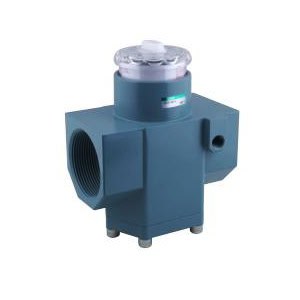

CKD 2304-12C-G Series Dial Regulator With Pressure Gauge
| Regulator Type: | Precision Control |
| Port Size: | Rc 1½ |
| Working fluid: | Compressed air |
| Max. working pressure (MPa): | 2.06 |
| Ambient / fluid temperatures (°C): | 5 to 65 |
| Set pressure (MPa): | 0.05 to 1.08 |
| Pressure relief: | With relief mechanism |
| Weight (kg): | 4 |
| Pressure Gauge: | G59D-8-P10 |
