DT4010-15-W
Lightweight and compact automatic drain discharger. The use of the snap mechanism increases durability and enables manual discharge.
Applicable compressor: 0.75 kW to 75 kW
Description

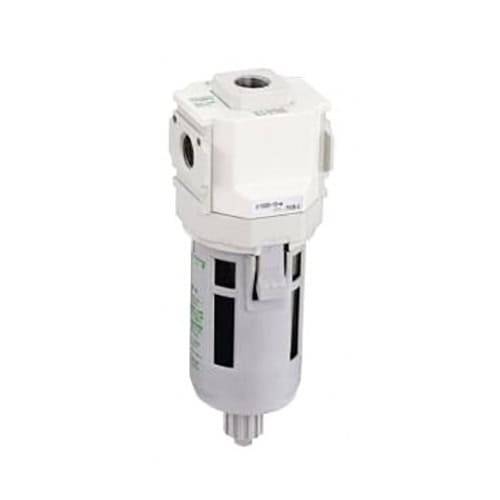

CKD DT4010-15-W Series Automatic Drain (Snap Drain)
| Type: | DT4010 Series Normally closed auto-drain |
| Working fluid: | Drain contained in the compressed air (water or oil) |
| Working pressure range: | 0.15 MPa (22 psi, 1.5 bar) to 1.0 MPa (150 psi, 10 bar) |
| Proof pressure: | 1.5 MPa (220 psi, 15 bar) |
| Operating ambient temperature range °C: | 5 (41°F) to 60 (140°F) |
| Port size: | Rc 1/2 |
| Drain outlet: | Barbed nipple |
| Weight: | 0.45 kg |
