C1000-6-W
Compact modular design in which major boundary dimensions of devices such as filters, regulators, lubricators
Description

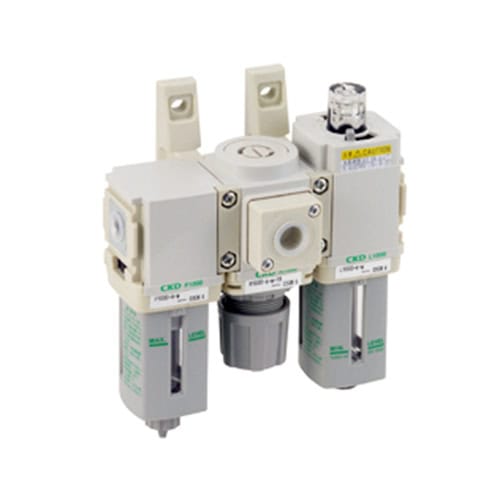

CKD C1000-6-W Series F.R.L Combination Unit
| Model No: | C1000-6-W |
| Port Size: | Rc 1/8 |
| Working fluid: | Compressed air |
| Max. working pressure (MPa): | 1 |
| Ambient / fluid temperatures (°C): | 5 – 60 |
| Filtration rating μm | 5 |
| Set Pressure (MPa): | 0.05 to 0.85 |
| Min. drip flow rate (m3/min): | 0.015 |
| Drain capacity (cm3): | 12 |
| Accessories: | Pressure gauge, Bracket, Bowl guard |
