C4010-10-W-F
W.L combination Standard White Series
Compact modular design in which major boundary dimensions of devices such as filters regulators + lubricators with auto drain
Description

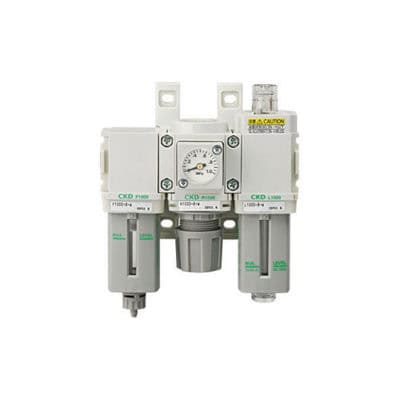

CKD C4010-10-W-F Series Filter Regulator + Lubricator With Auto drain
| Type: | FRL Combination Units |
| Model No: | C4010-10-W-F |
| Port Size: | Rc 3/8 |
| Working fluid: | Compressed air |
| Max. working pressure (MPa): | 1 |
| Ambient/fluid temperatures (°C): | 5 – 60 |
| Filtration rating μm | 5 |
| Drain Discharge: | Filter/auto-drain with manual override (NO: Exhaust when not pressurized) |
| Set Pressure (MPa): | 0.05 to 0.85 |
| Oil storage capacity (cm3): | 170 |
| Min. drip flow rate (m3/min): | 0.065 |
| Drain capacity (cm3): | 45 |
| Weight kg: | 1.45 |
| Accessories: | Pressure gauge, Bracket, Bowl guard |
