4GA320R-C6-E2-2
3, 5-port valve with improved environmental performance, safety, reliability, and ease of use. High-function.
Description

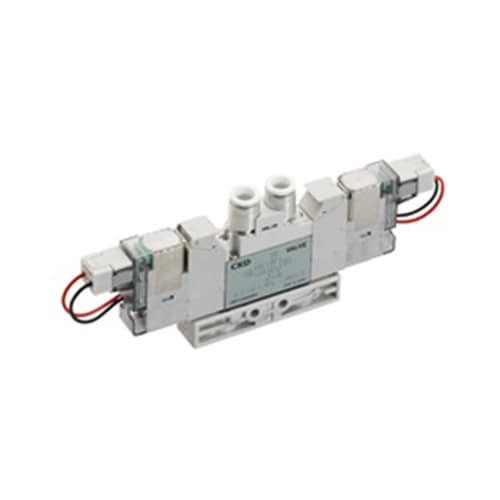

CKD 4GA320R-C6-E2-2 Pilot Operated Valve
| Valve and operation: | Pilot-operated soft spool valve |
| Port Size: | 6 mm push-in fitting |
| Solenoid Position: | 2-position double |
| Voltage: | 200 VAC |
| Electrical connection: | Lead wire (300 mm), surge suppressor/indicator lamp |
| Working fluid: | Compressed air |
| Max. working pressure: | 0.7 MPa |
| Proof Pressure: | 1.05 MPa |
