SCK-00-0.3

SCK-00-0.3

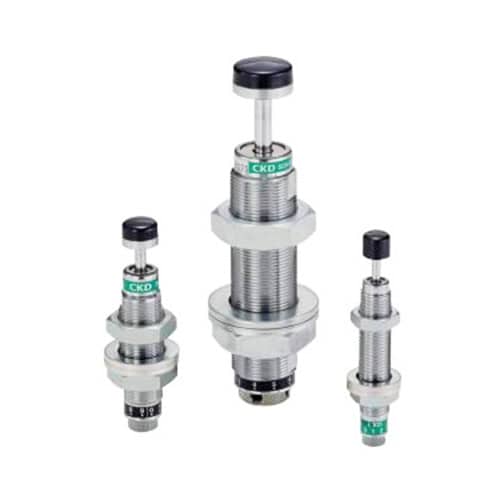

CKD SCK Series Adjustable Shock Absorber due to constant resistance throughout the stroke.
Resistance can be shifted to high or low by adjusting, so collision energy can be absorbed appropriately.

Category:

Description

CKD SCK-00-0.3 Series Adjuster Short Absorber

Max. energy absorption (J):2.94
Type / Classification:Spring return with an adjuster
O.D thread size (mm):M20 X 1.0
Stroke length (mm):10
Max. absorbed energy (kJ/hr):8.1
Max. colliding speed (m/s):1.0
Max. operating frequency (Cycle/min):45
Ambient temperature °C:-10 (14°F) ~ 80 (176°F)
Max. load (N):540
Weight (kg):0.2
Return spring forceWhen extended (N):5.9
When compressed (N):11.3
