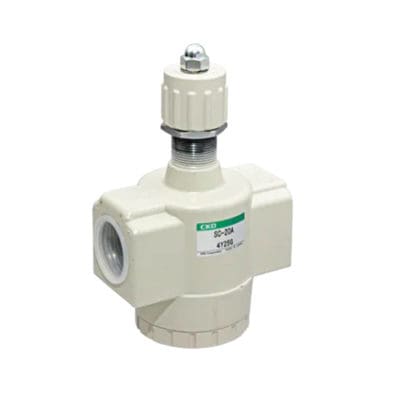

SC-20A
Inline speed controller large bore size, Adjusting the dial has dislocation prevention.
Description
CKD SC-20A Series Large Bore Speed Controller
| Type: | Large Bore Size Speed Controller |
| Working fluid: | Compressed air |
| Max. working pressure: | 1.0 MPa (150 psi, 10 bar) |
| Min. working pressure: | 0.05 MPa (7.3 psi, 0.5 bar) |
| Proof pressure: | 1.5 Mpa (220 psi, 15 bar) |
| Fluid temperature °C: | 5 (41°F) to 60 (140°F) |
| Port size: | Rc 3/4 |
| Cylinder bore size Ø: | Ø 100mm to Ø 200mm |
| Free flow rate: | 10300 µmin (ANR) |
| Controlled flow rate: | 8300 µmin (ANR) |
| Weight: | 0.5 kg |
