SC1-10
Inline speed controller medium bore size, Mountable from either the bottom or the side, Adjusting dial with dislocation prevention.
Description

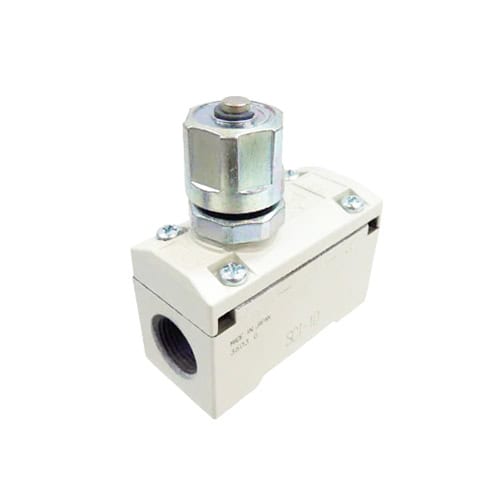

CKD SC1-10 Series Speed Controller
| Type: | Speed Controller Medium Bore Size |
| Working fluid: | Compressed air |
| Max. working pressure: | 1.0 Mpa (150 psi, 10 bar) |
| Proof pressure: | 1.5 Mpa (220 psi, 15 bar) |
| Fluid temperature °C: | 5 (41°F) to 60 (140°F) |
| Port size: | Rc 3/8 |
| Weight: | 205 g |
| Cylinder bore size: | Ø50 to Ø140 |
| Dial value (needle position): | 10 |
| Free flow rate: | 2600 µmin(ANR) |
| Controlled flow rate: | 1500 µmin(ANR) |
