SC3W-8-10
Elbow speed control valve with push-in fitting. Piping screw is coated with sealant.
Description

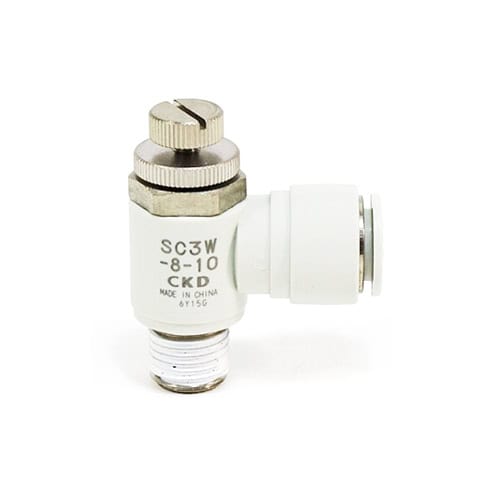

CKD SC3W-8-10 Series One-Touch Speed Controller
| Type: | One-Touch Speed Controller |
| Working fluid: | Compressed air |
| Max. working pressure: | 1.0 MPa (150 psi, 10 bar) |
| Min. working pressure: | 0.05 MPa (7.3 psi, 0.5 bar) |
| Proof pressure: | 1.5 Mpa (220 psi, 15 bar) |
| Fluid temperature °C: | 5 (41°F) to 60 (140°F) |
| Port size: | R1/4 |
| Compatible tube Ø: | 10 mm |
| Weight: | 54 g |
