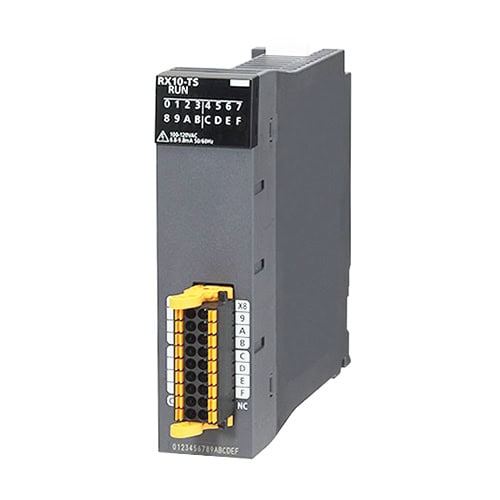

RX10-TS
PLC iQ-R Series; 100-120V AC input module, 16 point, Spring clamp terminal
Description
Mitsubishi RX10-TS Series Digital Input Module
Input module specifications
| Item: | AC Input Module |
| Model: | RX10-TS |
| Input points: | 16 |
| Voltage, frequency: | 100…120 V AC, 50/60 Hz |
| Rated input current (mA): | 8.2 (100 V AC, 60 Hz) 6.8 (100 V AC, 50 Hz) |
| Response time (ms): | ≤ 20 |
| Common terminal arrangement (points/common): | 16 |
| Interrupt function: | ● |
| External interface*3 | |
| Spring-clamp terminal block: | ● |
| 18-point screw terminal block: | — |
