R35B
5 slots, for MELSEC iQ-R Series main base modules
Description

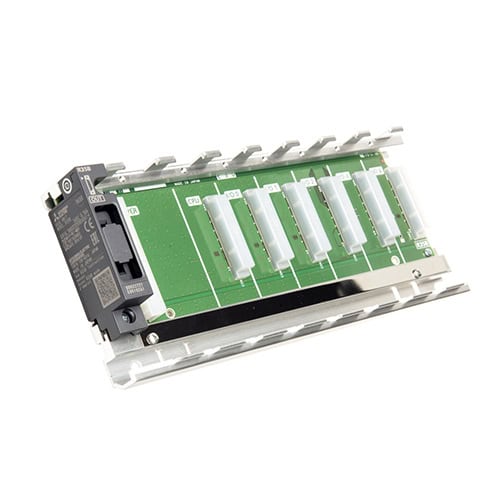

Mitsubishi R35B MELSEC iQ-R Series Main Base Unit
| Item | Main base unit (Standard) |
| R35B | |
| Number of I/O modules installed | 5 |
| DIN rail mounting adapter type | R6DIN1 |
| External dimensions (H x W x D, mm) | 101 x 245 x 32.5 |
Base Unit iQ-R Series Specifications

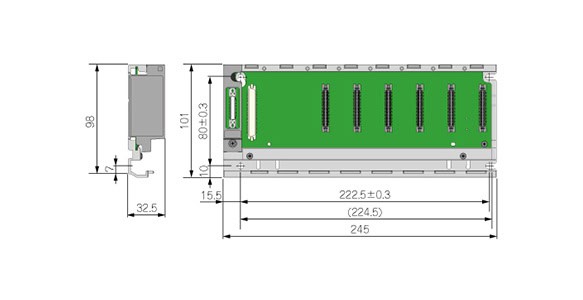

R35B dimensional outline drawing
- Number of input/output units equipped: 5
- 5 V DC internal current consumption: 0.58 A
- Mounting hole size: M4 screw hole or ø4.5 (4.5 mm in diameter) hole (for M4 screw)
- Mass: 0.41 kg
