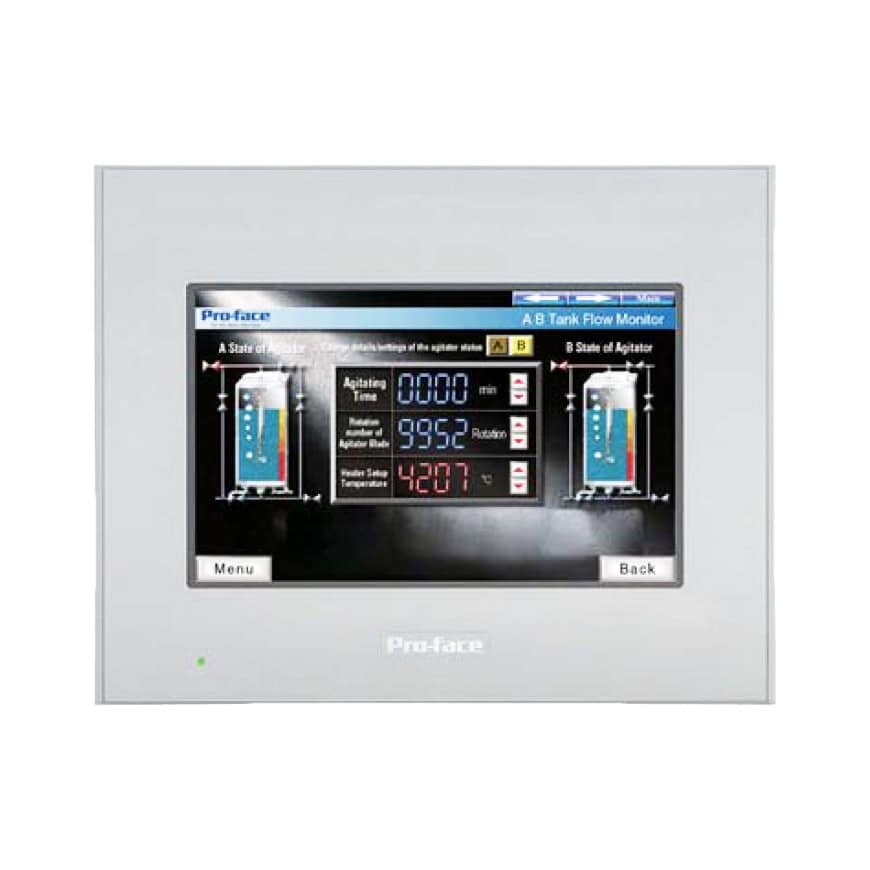

PFXGP4401WADW
Pro-face 7.0″ Standard (wide) – GP4000 HMI
Analog Touchscreen Operator Interface with USB and Serial Communication Ports
Description
Pro-face PFXGP4401WADW Analog Touch Screen
| Model: | PFXGP4401WADW |
| Graphics Display Resolution: | 800 x 480 pixels (WVGA) |
| Display Type and Size: | TFT Color LCD (7.0 widescreen) |
| Display Colors: | 65,536 Colors (No blink)/16,384 Colors (Blink) |
| Display Area: | W 152.4 x H 91.44 mm |
| Touch Screen: | Resistive film analog |
| USB: | USB Type-A (2.0) x 1 , USB mini-B (2.0) x1 |
| Brightness / Contrast: | 8 levels of adjustment |
| Serial: | RS-422 / RS-485 |
| Programming Memory: | 16MB Flash EPROM |
| Backup Memory: | 128kb SRAM with battery backup |
| Input Voltage: | 24 VDC |
