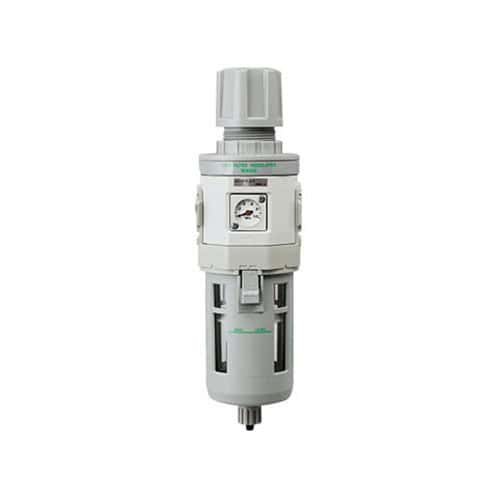

W4000-15-W Series Filter Regulator
CKD Air Filter Regulator Standard White Series
New Series using integrated filter and regulator, 5μm elements for dust removal, and 0.3μm elements for tar removal.
Description
CKD W4000-15-W Air Filter Regulator Standard White Series
| Model No: | W4000-15-W |
| Port Size: | Rc 1/2 |
| Rated Filtration: | 5 micrometer |
| Working fluid: | Compressed air |
| Max. working pressure: | 1 MPa |
| Set Pressure Range: | 0.05 to 0.85 MPa |
| Operating Temperature Range: | 5 to 60 °C |
| Filtration rating μm | 5 or 0.3 |
| Drain capacity: | 80 cm³ |
| Accessories: | Pressure Gauge, Bowl guard |
