V3000-10-W

V3000-10-W

One action exhaust operation. Ideal for preventing accidents due to residual pressure in pneumatic lines.
Port size: Rc 3/8

Category:

Description

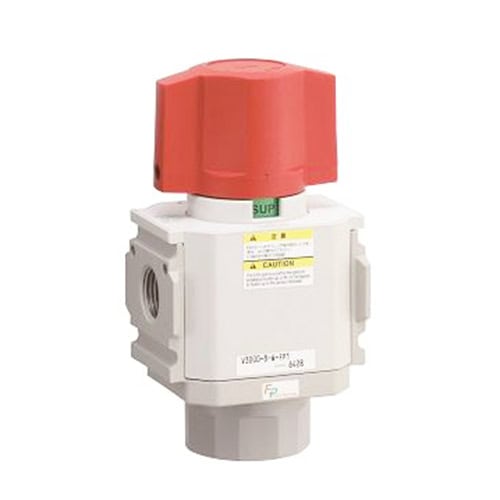

CKD V3000-10-W Shut Off Valve White Series

Model No:V3000-10-W
Port Size:Rc 3/8
Working fluid:Compressed air
Max. working pressure:1 MPa
Withstanding Pressure:1.5 MPa
Operating Temperature Range:5 to 60 °C
Operation lever switching angle:90°
Operation Pushing force:80 N
Operation Torque:2.0 N-m
Product weight:0.25 kg



Catalog PDF

CKD V1000 V3000 Series Shut Off Valve
