SCG Series
Medium bore size, wide variation and reliable. [Bore Size] dia.32-100
Description

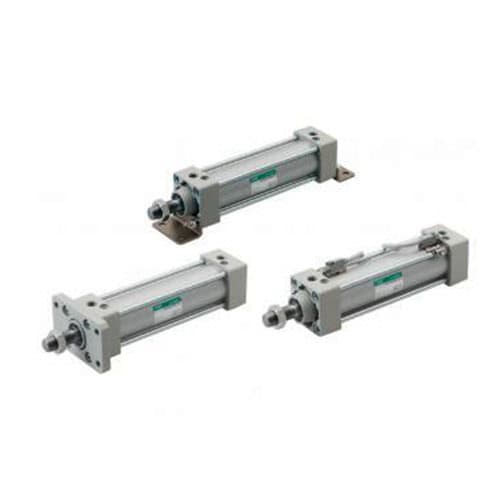

CKD SCG Series Tie Rod Cylinder
Medium bore size (φ32 to φ100) series of standard tie rod cylinders. An environment-friendly cylinder that has eliminated hazardous substances. Suitable for all applications with reliable performance and a wide variety of options.
Variations
| Part Number | Bore (mm) | Stroke (mm) |
| SCG-00-32B-50 | 32 | 50 |
| SCG-00-32B-75 | 32 | 75 |
| SCG-00-32B-100 | 32 | 100 |
| SCG-00-32B-150 | 32 | 150 |
| SCG-00-32B-200 | 32 | 200 |
| SCG-00-32B-250 | 32 | 250 |
| SCG-00-32B-300 | 32 | 300 |
| SCG-00-32B-350 | 32 | 350 |
| SCG-00-32B-400 | 32 | 400 |
| SCG-00-32B-450 | 32 | 450 |
| SCG-00-32B-500 | 32 | 500 |
| SCG-00-40B-50 | 40 | 50 |
| SCG-00-40B-75 | 40 | 75 |
| SCG-00-40B-100 | 40 | 100 |
| SCG-00-40B-150 | 40 | 150 |
| SCG-00-40B-200 | 40 | 200 |
| SCG-00-40B-250 | 40 | 250 |
| SCG-00-40B-300 | 40 | 300 |
| SCG-00-40B-350 | 40 | 350 |
| SCG-00-40B-400 | 40 | 400 |
| SCG-00-40B-450 | 40 | 450 |
| SCG-00-40B-500 | 40 | 500 |
| SCG-00-50B-50 | 50 | 50 |
| SCG-00-50B-75 | 50 | 75 |
| SCG-00-50B-100 | 50 | 100 |
| SCG-00-50B-150 | 50 | 150 |
| SCG-00-50B-200 | 50 | 200 |
| SCG-00-50B-250 | 50 | 250 |
| SCG-00-50B-300 | 50 | 300 |
| SCG-00-50B-350 | 50 | 350 |
| SCG-00-50B-400 | 50 | 400 |
| SCG-00-50B-450 | 50 | 450 |
| SCG-00-50B-500 | 50 | 500 |
| SCG-00-63B-50 | 63 | 50 |
| SCG-00-63B-75 | 63 | 75 |
| SCG-00-63B-100 | 63 | 100 |
| SCG-00-63B-150 | 63 | 150 |
| SCG-00-63B-200 | 63 | 200 |
| SCG-00-63B-250 | 63 | 250 |
| SCG-00-63B-300 | 63 | 300 |
| SCG-00-63B-350 | 63 | 350 |
| SCG-00-63B-400 | 63 | 400 |
| SCG-00-63B-450 | 63 | 450 |
| SCG-00-63B-500 | 63 | 500 |
| SCG-00-80B-50 | 80 | 50 |
| SCG-00-80B-75 | 80 | 75 |
| SCG-00-80B-100 | 80 | 100 |
| SCG-00-80B-150 | 80 | 150 |
| SCG-00-80B-200 | 80 | 200 |
| SCG-00-80B-250 | 80 | 250 |
| SCG-00-80B-300 | 80 | 300 |
| SCG-00-80B-350 | 80 | 350 |
| SCG-00-80B-400 | 80 | 400 |
| SCG-00-80B-450 | 80 | 450 |
| SCG-00-80B-500 | 80 | 500 |
| SCG-00-100B-50 | 100 | 50 |
| SCG-00-100B-75 | 100 | 75 |
| SCG-00-100B-100 | 100 | 100 |
| SCG-00-100B-150 | 100 | 150 |
| SCG-00-100B-200 | 100 | 200 |
| SCG-00-100B-250 | 100 | 250 |
| SCG-00-100B-300 | 100 | 300 |
| SCG-00-100B-350 | 100 | 350 |
| SCG-00-100B-400 | 100 | 400 |
| SCG-00-100B-450 | 100 | 450 |
| SCG-00-100B-500 | 100 | 500 |
