SMG Series
Easier to use due to the additional variations.
- Space-saving and a light weight due to the integrated mount block.
- Installation can be done directly from 5 sides freely since mount block is integrated.
- Even with the detection switch, there is almost no protruding space.
- Easier maintenance with the new mounting method adopted.
Description

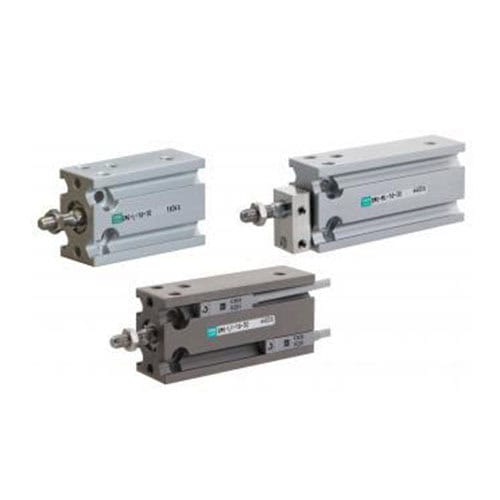

CKD SMG Series Compact Cylinder
Lightweight, space-saving, the compact cylinder with a simple shape for easier mounting.
The detection switch fits into the body with barely any protrusion.
Variations
| Model No. | Product name | Bore size |
| SMG | Double-acting / single rod | φ6, φ10, φ16, φ20, φ25, φ32 |
| SMG-X | Single-acting / push | φ6, φ10, φ16, φ20, φ25, φ32 |
| SMG-Y | Single-acting / pull | φ6, φ10, φ16, φ20, φ25, φ32 |
| SMG-F | Double-acting / fine speed | φ6, φ10, φ16, φ20, φ25, φ32 |
| SMG-M | Double-acting / rotation-stop | φ6, φ10, φ16, φ20, φ25, φ32 |
