Description

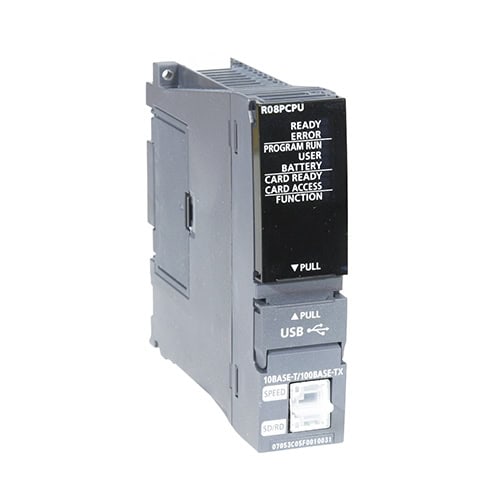

Mitsubishi R08PCPU MELSEC iQ-R Series Process CPU Module

Item	R08PCPU
Control method	Stored program cyclic operation
I/O control mode	Refresh mode (Direct access I/O is available by specifying direct access I/O (DX, DY) )
Programming language
Extended programming language	Function block (FB), label programming (system/local/global)
Program execution type	Initial, scan, fixed scan, interrupt, standby
Number of I/O points [X/Y] (point)	4096
Constant scan (ms) (Function for keeping regular scan time)	0.2…2000 (Setting available in 0.1 ms increments)
Memory capacity
Program capacity (step)	80K
Program memory (byte)	320K
Device/label memory (ECC type)*1 (byte)	1188K
Data memory (byte)	5M

 : Ladder diagram  : Structured text  : Function block diagram  : Sequential function chart
