R16PCPU

R16PCPU

160K step memory; basic operation processing speed (LD instruction), 0.98 ns

Category:

Description

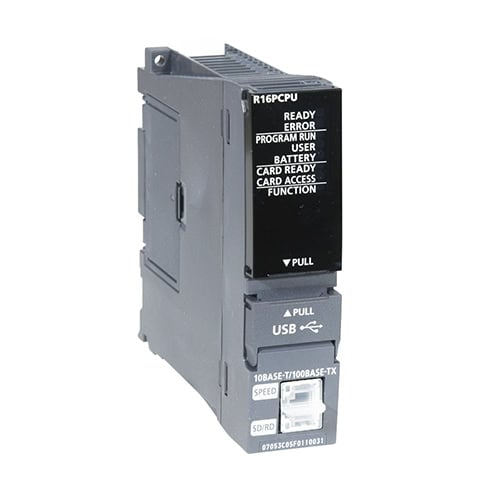

Mitsubishi R16PCPU MELSEC iQ-R Series Process CPU Module

ItemR16PCPU
Control methodStored program cyclic operation
I/O control modeRefresh mode
(Direct access I/O is available by specifying direct access I/O (DX, DY) )
Programming languageLD ST FBD SFC
Extended programming languageFunction block (FB), label programming (system/local/global)
Program execution typeInitial, scan, fixed scan, interrupt, standby
Number of I/O points [X/Y] (point)4096
Constant scan (ms)
(Function for keeping regular scan time)
0.2…2000
(Setting available in 0.1 ms increments)
Memory capacity
Program capacity (step)160K
Program memory (byte)640K
Device/label memory (ECC type)*1 (byte)1720K
Data memory (byte)10M
