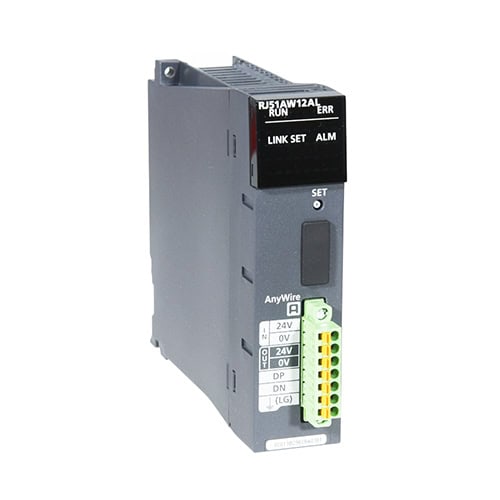

RJ51AW12AL
PLC iQ-R Series AnyWireASLINK Master unit is a sensor-level network that realizes a smaller installation space and reduces wiring owing to its easy wiring topology.
Description
Mitsubishi RJ51AW12AL Series AnyWireASLINK Master Module
| Item | RJ51AW12AL |
| Max. number of I/O points | 512 points (256 input points/256 output points) |
| Max. number of connectable modules | 128 (varies according to each slave module’s current consumption) |
| Overall cable distance*1 (m) | 200*2 |
| Topology | Bus (multi-drop, T-branch, tree branch) |
| Communication clock (kHz) | 27.0 |
| Max. communication cable supply current*1 (A) | 2 (when using 1.25 mm2 cable) 1 (when using 0.75 mm2 cable) |
