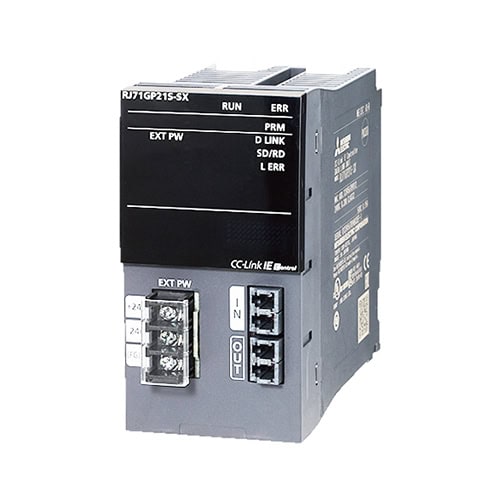

RJ71GP21S-SX
PLC iQ-R CC-Link IE Master/Local Unit, 1Gbps Fibre optic GI, ext Power supply
Description
Mitsubishi RJ71GP21S-SX MELSEC iQ-R Series CC-Link IE Control Network Module
| Communication speed | 1 Gbps |
| Transmission path | Duplex loop |
| Communication cable | Optical fiber cable which satisfies 1000 BASE-SX standard: Multi-mode optical fiber (GI) |
| Max. station-to-station distance (m) | 550 (when the outer core diameter is 50 µm) |
| Overall cable distance (m) | 66000 (when 120 stations are connected and the outer core diameter is 50 µm) |
| Max. number of connectable stations | 120 (control station: 1, normal station: 119) |
| Max. number of link points per network | |
| Link relay (LB) | 32K points (32768 points, 4K bytes)*1 |
| Link register (LW) | 128K points (131072 points, 256K bytes)*1 |
| Link input (LX), link output (LY) | 8K points (8192 points, 1K bytes) |
