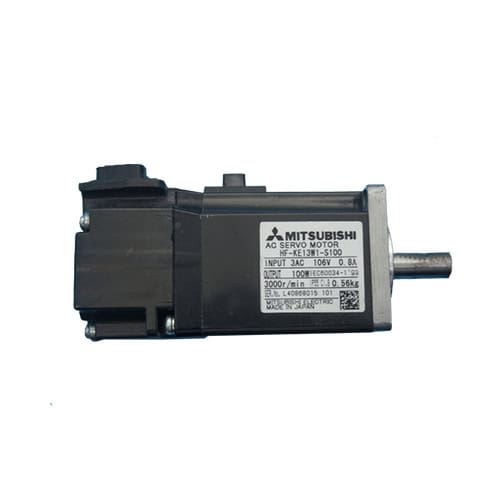

HF-KE13W1-S100
Mitsubishi HF-KE13W1-S100 Series Servo Motor Rated output: 100 (W) Rated speed: 3000 (r/min) Rated current: 0.8 (A), Maximum current: 2.4 (A)
Description
Mitsubishi HF-KE13W1-S100 Series Servo Motor
| Rated output | 100 (W) |
| Rated speed | 3000 (r/min) |
| Shaft shape | Standard (straight shaft) |
| Power facility capacity | 0.3 kVA |
| Continuous Rated output | 100 (W) |
| Running duty Rated torque (N·m [oz·in]) | 0.32 (45.3) |
| Maximum torque (N·m [oz·in]) | 0.95 (135) |
| Rated speed | 3000 (r/min) |
| Maximum speed | 4500 (r/min) |
| Rated current | 0.8 (A) |
| Maximum current | 2.4 (A) |
