V1000-8-W
One action exhaust operation. Ideal for preventing accidents due to residual pressure in pneumatic lines.
Port size: Rc 1/4
Description

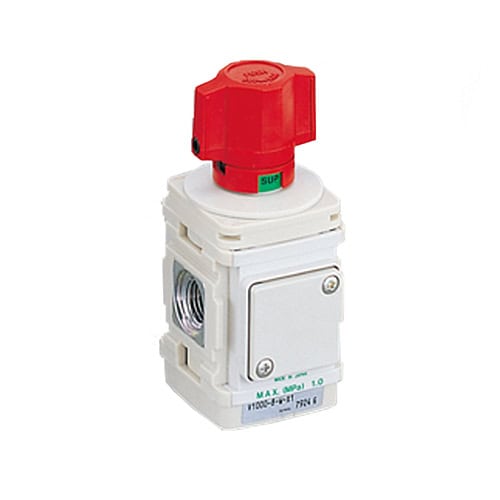

CKD V1000-8-W Shut Off Valve White Series
| Model No: | V1000-8-W |
| Port Size: | Rc 1/4 |
| Working fluid: | Compressed air |
| Max. working pressure: | 1 MPa |
| Withstanding Pressure: | 1.5 MPa |
| Operating Temperature Range: | 5 to 60 °C |
| Operation lever switching angle: | 90° |
| Operation Pushing force: | 18 N |
| Operation Torque: | 0.5 N-m |
| Product weight: | 0.17 kg |
